How Electric Butterfly Valve Operate and Their Uses

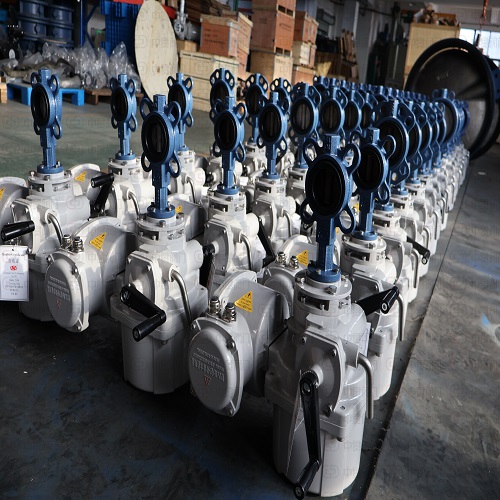

Electric butterfly valves are essential for controlling the flow in industrial systems. These valves operate using an electric motor to rotate a disc inside the valve, which adjusts the amount of liquid or gas that can pass through. The electric butterfly valve motors come in various power types, such as AC 220V, DC 24V, or AC 380V, depending on the system’s requirements. These power options ensure compatibility with different electrical configurations, making the valves versatile for various applications.

Some motors are equipped to regulate flow using smart signals like 4-20MA, while others are designed for simple on/off functionality or are built to be safe in hazardous environments. The disc in the valve rotates a quarter turn to either completely block or allow fluid passage, enabling quick and efficient flow control. The electric butterfly valve is typically constructed from durable materials like ASTM A536 65-45-12, WCB, or CF8M, ensuring long-lasting performance and reliability in demanding applications. Additionally, these valves can have various housings, seals, and sizes to suit different applications. Electric butterfly valves can have either a lug or wafer connection style, offering flexibility for different installation needs. The wafer style connection allows the valve to be sandwiched between flanges, providing a compact and efficient installation option.

Key Takeaways

Electric butterfly valves use a motor to turn a disc and control fluid flow.

These valves work with different power types like AC 220V AC 380V and DC 24V DC 110V to fit system needs.

Checking seals and gaskets often is important to stop leaks and keep them working well.

Electric actuators help by giving accurate flow control and letting you operate them remotely.

Butterfly valves are cheaper and need less care and setup than other valves.

They are used a lot in industries like chemicals, medicine, energy, and water treatment because they work well and last long.

Using electric butterfly valves with automation saves time by cutting manual work and giving instant updates.

Picking the right materials for these valves makes them strong and able to handle tough conditions, so they last longer.

Butterfly valves are designed to stay in the last known position during power loss, ensuring system stability.

These valves are ideal for on-off control of water and compatible media.
