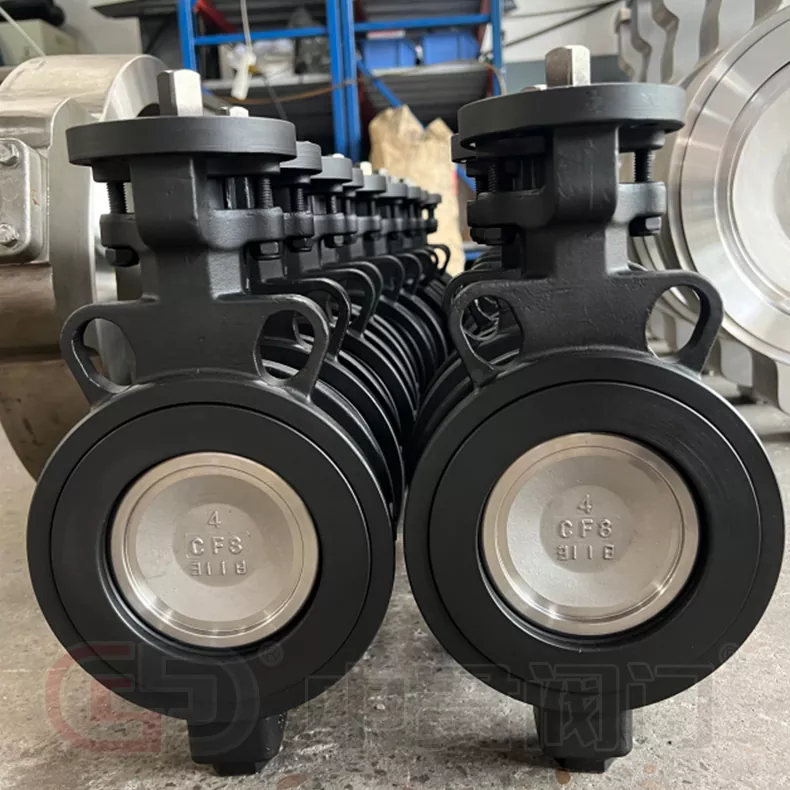

High Performance Butterfly Valve with PTFE Seat incorporates a double-offset (double eccentric) mechanical structure, designed to eliminate the severe seat friction and high torque common in conventional concentric butterfly valves. By offsetting the valve shaft from both the sealing face centerline and the pipe centerline, the disc operates on a camming motion.
During opening, the double offset shaft lifts the disc off the PTFE seat within the first few degrees of 90° rotation, preventing seal wiping and premature material deformation.
Eliminating sliding contact lowers overall torque requirements, allowing the selection of smaller, more cost-effective pneumatic or electric actuators.
Line pressure pushes dynamically against the resilient PTFE valve seat, strengthening disc contact to guarantee tight sealing under variable line pressures.
The valve seat is precision-machined using high-grade PTFE or Reinforced PTFE (RTFE), delivering exceptional performance in aggressive media environments:
Bubble-Tight Shutoff: Achieves ANSI/FCI 70-2 Class VI zero-leakage shutoff, essential for hazardous chemicals and high-purity fluid processing.
Broad Chemical Resistance: Inert to acids, alkalis, solvents, and organic fluids across process pipelines.
Low Friction Coefficient: Ensures smooth valve cycling and consistent seal longevity under high-frequency operation.
Zhongguan Valve manufactures High Performance Butterfly Valve with PTFE Seat utilizing certified alloy steel and stainless steel formulations, ensuring rigorous structural integrity and dimensional compliance for global engineering standards.
The contoured disc design reduces fluid turbulences and lowers system pressure drops, contributing to long-term pumping energy savings.
Compact face-to-face dimensions allow rapid two-person installation on job sites, reducing mechanical installation time.
The corrosion-resistant features of High Performance Butterfly Valve with PTFE Seat make it suitable for fluid shutoff and throttling across diverse process networks.
Handles corrosive process chemicals, solvent recovery systems, and acid distribution lines.
Installed in water treatment systems, demineralized water lines, and auxiliary cooling circuits.
Regulates cooling water circuits, gas lines, and industrial effluent treatment systems.
Oversees hot water distribution networks, municipal water supply, and HVAC chilled water loops.
Manages shipboard ballast systems, seawater cooling loops, and offshore utility fluids.
Zhongguan Valve manufactures each High Performance Butterfly Valve with PTFE Seat in strict accordance with international standards, including API 609, ANSI B16.34, and GB standards. Where required, WRAS-certified seat materials are available for water utility projects.
Zhejiang Zhongguan Valve Manufacture Co., Ltd. brings over 19 years of technical experience to global valve buyers. Established in 2019 in Oubei, Yongjia, Wenzhou—the renowned hometown of pumps and valves in China—our company integrates regional supply chains with streamlined direct export services.
Dedicated primarily to cast iron valve production and northern water valve supply chain integration. The core technical team possesses over 20 years of hands-on valve manufacturing experience.
Focused on southern industrial valve supply chain integration, alloy/cast steel valve production, double eccentric butterfly valve manufacturing, and customized engineering exports.

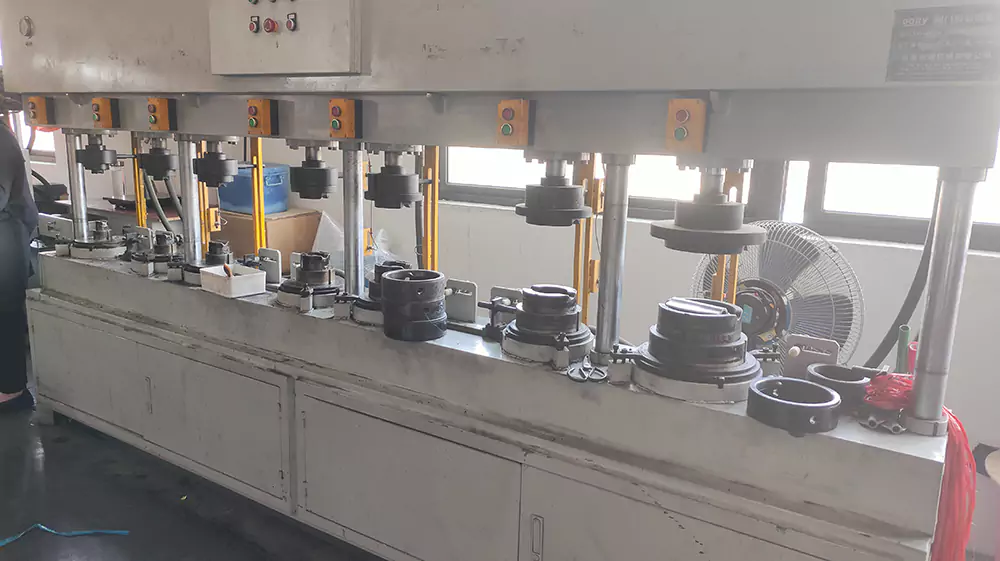

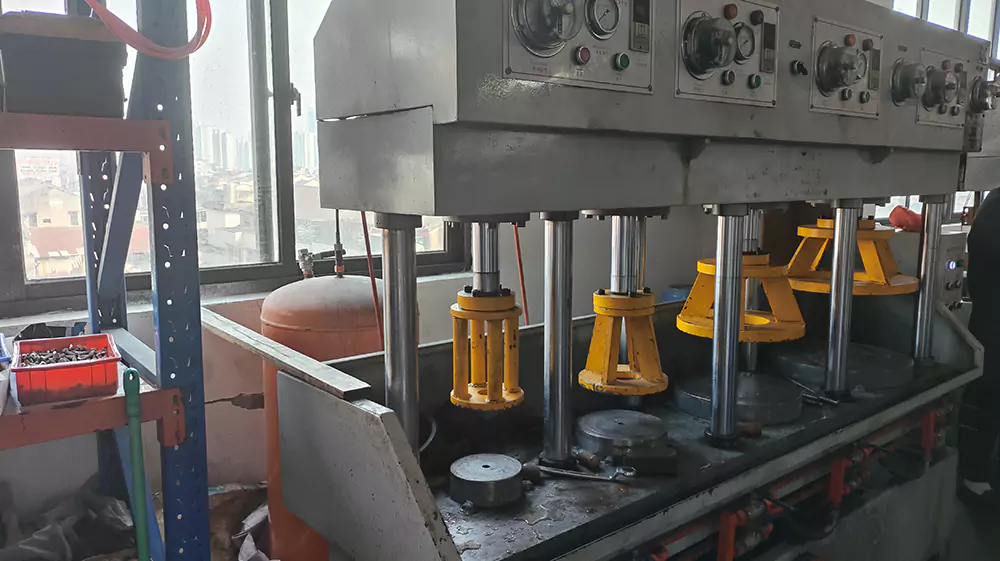

Our facilities are fully equipped with dedicated production and quality control tooling: including automated pressure testing machines for shell and seat tightness, precision sleeve press-fitting machinery, specialized valve seat installation devices, stem assembly tools, and laser product marking equipment. We hold ISO system certifications and proprietary design patents featuring optimized weight distribution and high cost-effectiveness.
Zhongguan Valve maintains active partnerships with overseas stockists and engineering project companies, primarily across Southeast Asia (including Vietnam, Malaysia, and Singapore) while serving buyers worldwide. We offer complete pre-sales, in-sales, and after-sales support.
Selecting the correct valve prevents site installation errors. Our technical team evaluates fluid media, pressure drops, and operating temperatures to clarify selection parameters. We systematically re-verify interface dimensions—such as stem patterns and rising/non-rising stem parameters on accompanying gate and check valves—before entering production.
Sales representatives provide real-time updates during production. On-site quality inspectors execute rigorous pressure testing, dimensional verification, and surface checks prior to packaging.
1-Year Warranty: Products include a 12-month quality guarantee. In the event of manufacturing quality issues, free product replacement is provided.
Technical Support: For site installation or actuator connection questions, our sales team connects buyers directly with our engineers to resolve technical issues promptly.
A high-performance butterfly valve with PTFE seat offers superior chemical resistance and zero-leakage shutoff (Class VI) compared to metal-seated valves, making it ideal for corrosive liquids and clean media below 200°C. The combination of double-eccentric motion and resilient PTFE material significantly reduces opening torque, minimizes seat abrasion, and ensures reliable seal memory over thousands of operating cycles.
For specialized project requirements, Zhongguan Valve can supply this product with fire-safe dual seats or customized alloy body materials. Contact our sales and engineering team today to receive detailed technical drawings, WRAS seat material certifications, and competitive direct factory quotes for your High Performance Butterfly Valve with PTFE Seat requirements.
