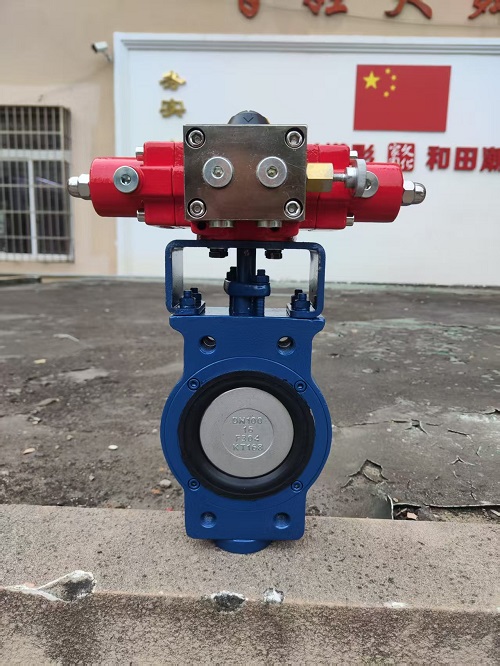

The material construction and engineering parameters of the Semi Lug WCB CF8 Eccentric Butterfly Valve are built according to rigid factory standards to withstand high flow rates, abrasive media, and differential pressures.
Cast steel construction delivers high structural integrity, tensile strength, and impact resistance for heavy-duty pipeline stresses.
Investment-cast 304 stainless steel disc with precision polished contact surfaces to resist corrosion, media erosion, and seat degradation.
Configurable elastomeric seat options (EPDM, NBR, PTFE) providing elastic deformation for repeatable zero-leakage shutoff under ANSI Class VI standards.
Fully integrated fluid-power operator providing fast response times, precise modulation, and reliable high-torque output for automated control loops.
A concentric butterfly valve features a stem passing directly through the center of the disc and seat, resulting in continuous rubber-to-metal rubbing during the entire 90-degree travel. In contrast, the double offset design of the Semi Lug WCB CF8 Eccentric Butterfly Valve positions the stem axis offset from both the seat seal center and the pipe centerline. When opening, the disc instantly cams away from the seat face, minimizing friction, reducing operating torque, avoiding seat deformation, and significantly extending component service life.
A standard wafer valve slips between two flanges using through-bolts with zero alignment support during maintenance. A full lug valve features tapped bolt holes spanning the entire perimeter, enabling full dead-end isolation. The semi-lug body design combines tapped lug holes with open bolt guides. This semi-lug architecture allows secure through-bolting for lower body weight and faster alignment while keeping the valve supported on one side during partial downstream pipeline disassembly, easing maintenance labor without removing the full assembly.
WCB carbon steel provides excellent mechanical strength and pressure containment for neutral, non-corrosive, or mildly aggressive industrial media, hot water, steam, and hydrocarbons. CF8 stainless steel (304) contains 18% chromium and 8% nickel, rendering it highly resistant to chemical attack, oxidation, organic fluids, and moisture. Combining a WCB outer body with a CF8 wetted disc optimizes cost efficiency while ensuring high corrosion resistance in the flow path.
While full-lug valves are preferred for true end-of-line dead-end service under full working pressure, the semi-lug design can support pipeline maintenance when bolted to the upstream flange. For permanent dead-end applications requiring complete downstream flange removal at maximum pressure, consult our technical engineering team during pre-sales selection to verify line pressure rating and specific bolting configurations.
The double offset mechanism and hydraulic control fit specific process environments requiring fast, automated isolation and zero leakage:
Handles raw water intake, sewage treatment slurries, and chemical dosing lines. The CF8 stainless steel disc resists localized pitting from biological and chemical elements, while the resilient seat prevents backflow leaks.
Integrated into fuel storage terminals, transfer pumps, and hydrocarbon pipelines. The hydraulic actuator delivers quick trip responses under high differential pressure.
Provides chemical resistance against mild acids, caustic washes, and industrial solvents using PTFE-seated configurations.
Deployed in cooling water circuits, low-pressure steam isolation, and boiler feed aux-systems. The double offset kinematics prevent thermal binding during rapid temperature transitions.
Used in large-scale chilled water systems, pulp stock lines, and food/pharmaceutical utility supply piping requiring automated hydraulic operation.
Zhejiang Zhongguan Valve Manufacture Co., Ltd. operates complete in-house machining, assembly, and pressure testing equipment. Every unit undergoes strict hydrostatic shell and seat pressure testing using pressing machines prior to shipment.
Our technical team assists engineering contractors and stocking distributors with:
Fluid compatibility checks and dynamic seat material selection (EPDM, NBR, PTFE).
Torque calculations for exact hydraulic actuation pairing.
Flange dimensional matching (PN10, PN16, ANSI classes).
Supported by northern cast iron supply chains and southern cast steel manufacturing bases in Wenzhou, Zhongguan supplies stockists and project contractors across Southeast Asia (Vietnam, Malaysia, Singapore) and worldwide. All products carry ISO certifications, available WRAS-certified seat options, and a comprehensive 1-year quality warranty with free replacement for manufacturing defects. Review our certificates and cooperative cases for more detail.
Contact our sales team to request full dimensional P&ID drawings, pressure testing documentation, or custom volume quotations for the Semi Lug WCB CF8 Eccentric Butterfly Valve. Explore related butterfly valve options such as the Marine Semi Lug Type Butterfly Valve and the Lug type Butterfly Valve.
Tighten flange bolts in a cross pattern and in stages to the specified torque. This helps avoid uneven gasket compression and body distortion, especially on larger DN sizes.
EPDM is generally used for water and steam, NBR for oil and fuel, and PTFE for corrosive media and higher temperatures. Final selection should match the actual medium, temperature, and pressure conditions.
Check for external leakage, actuator response, bolt torque, and seat wear at regular intervals. Any change in operating torque or sealing performance should be inspected before continued use.
Confirm the required valve torque, stroke, control signal, and hydraulic supply pressure. The actuator should provide sufficient torque with a suitable safety margin for the actual differential pressure.
Check flange alignment, bolt torque, gasket condition, and whether foreign material is trapped at the seat. If leakage continues, inspect the seat and disc contact area before returning the valve to service.
