Think of your home's water faucet and a highway tunnel. The faucet can be fully open, but the water flow is still limited by its own diameter. The highway tunnel, however, allows vehicles to pass through at full speed without any obstruction. This simple analogy captures the core difference between a Full Port and a Reduced Port ball valve.
First, Let's Understand the Ball Valve Itself

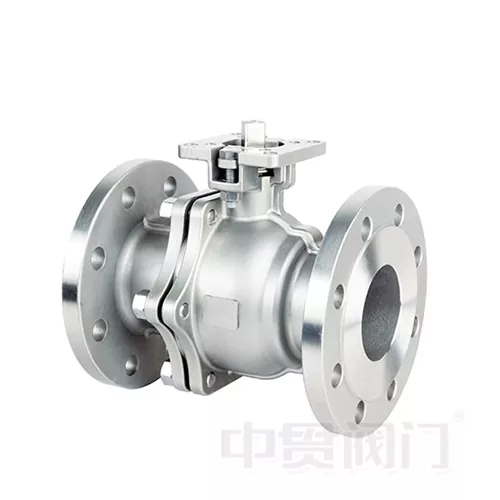

A ball valve, as the name suggests, has a core component—a ball with a hole in it. Turning the valve handle rotates this ball. When the hole aligns with the pipe, fluid (water, oil, gas, etc.) can flow through. When the ball is rotated 90 degrees, the hole is blocked, and the flow is shut off. It's a highly efficient and reliable on/off valve.
Full Port and Reduced Port describe the size of this hole in the ball and the width of the valve's internal passage.
Full Port Ball Valve: The Unobstructed "Highway"
Design Feature: The diameter of the hole in the ball of a Full Port ball valve is the same size as the connecting pipe's diameter. This means when the valve is fully open, its passage is a straight, unobstructed bore with no narrow points.
Key Advantage: Zero Resistance, No Clogging
Unobstructed Flow: Fluid passes through with almost no additional pressure loss, like driving on a straight highway.
Powerful Function: It allows for a special operation called "pigging." In long-distance pipelines (e.g., for oil and gas), a device called a "pig" is sent through the pipe to clean or inspect it. Only a Full Port ball valve allows this "pig" to pass through.
Think of it as: A road that maintains its full width from start to finish, with no bottleneck sections.
Common Uses: Critical process pipelines, long-distance transfer lines, and any application requiring maximum flow or pigging, often in oil, gas, and chemical industries.
Reduced Port Ball Valve: The Cost-Effective "Main Street"
Design Feature: The diameter of the hole in the ball of a Reduced Port ball valve is smaller than the connecting pipe's diameter. Typically, it's one standard size smaller. For example, the bore of a DN100 (100 mm) reduced port valve might only be about 80 mm.
Key Advantage: Lower Cost, Compact, Lighter Weight
Cost-Effective: Because the ball and valve body can be made smaller, it uses less material and is usually cheaper than a Full Port valve of the same size.
Compact and Lightweight: Its overall structure is smaller, making it advantageous where installation space is limited.
Sufficient Flow: While the passage is narrower, the flow rate is perfectly adequate for most everyday and general industrial applications.
Think of it as: A main street that is mostly wide but has a slightly narrower section under a bridge. It might slow traffic a tiny bit, but it doesn't hinder normal passage.
Common Uses: This is the most common and widely used type of ball valve. You will most likely find Reduced Port valves in standard water supply, heating systems, construction, and many industrial pipelines where minimal pressure loss is not critical.
Conclusion: How to Choose?
In simple terms, your choice depends on your needs:
Choose a Full Port Ball Valve when you need an unrestricted flow or require the future capability for pipeline pigging. You pay a higher cost and need more space for this performance and functionality.
For the vast majority of general applications, like the main water shut-off in a house or a building's heating pipes, the Reduced Port Ball Valve is perfectly sufficient and offers the best value. It trades a minor loss in flow and pressure for significant cost savings and convenience.
We hope this article helps you clearly understand the difference between these two types of ball valves. The next time you see or select one, you'll know exactly which "road" is right for your system.
-
