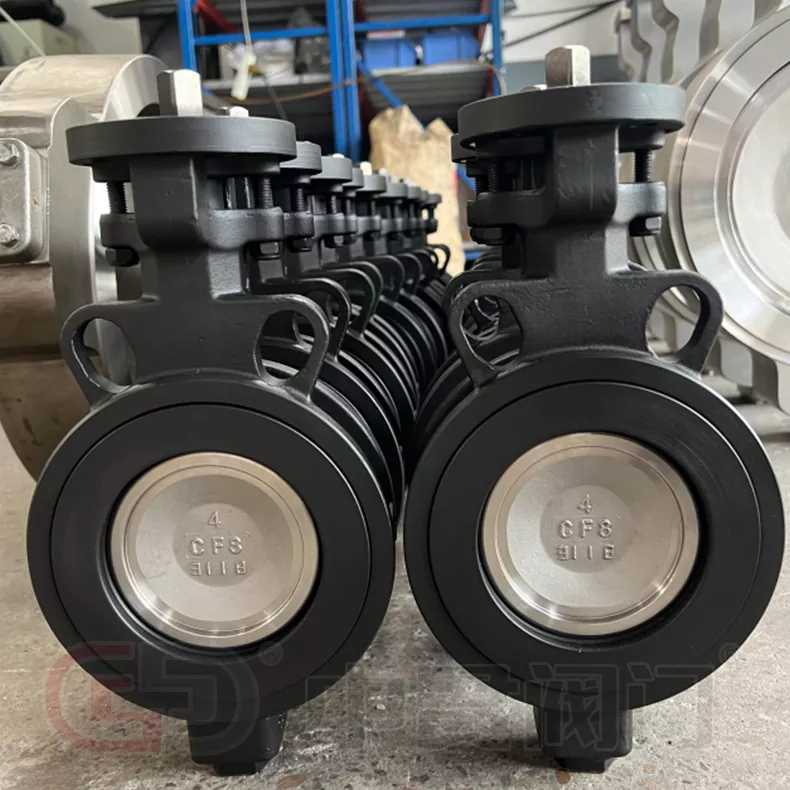

Zhongguan Valve manufactures High Performance Butterfly Valve for High Temperature applications for industrial pipeline systems exposed to elevated temperature conditions. The butterfly valve production range covers wafer, lug, U-section, and flange structures, with a main diameter range from DN40 to DN1600.
High-temperature pipeline service places higher demands on valve materials, sealing structures, and mechanical strength. Continuous heat exposure affects material expansion, sealing contact, and component interaction during operation. The valve structure, seat material, and connection method form the main factors influencing long-term operating conditions.
High temperature operation changes the requirements for butterfly valve construction. The valve body and disc require sufficient mechanical strength to maintain structural integrity under elevated temperatures, while the sealing system requires suitable material characteristics for continuous contact with the operating medium.
Zhongguan Valve applies alloy steel for the valve body and disc in its high-performance butterfly valve range. The material combination is used for industrial applications where higher strength and wear resistance are required during repeated opening and closing cycles.
The quarter-turn structure allows the disc to rotate within the valve body for flow isolation and regulation. The eccentric design reduces unnecessary contact between sealing surfaces during movement, limiting friction during operation.
The valve body and disc are manufactured with alloy steel to provide structural strength for industrial pipeline applications. During operation under elevated temperature conditions, the material maintains the mechanical properties required for valve movement and pressure control.
The combination of alloy steel components and suitable sealing materials forms the basic structure of High Performance Butterfly Valve for High Temperature applications.
Seat material directly affects sealing characteristics and operating temperature range. PTFE seats provide low friction, corrosion resistance, and stable sealing performance in applications involving various industrial media. Metal seat structures are applied where higher temperature resistance and mechanical stability are required.
Zhongguan Valve can provide butterfly valve configurations with different seat options, including WRAS-certified valve seats when required.
Double offset and triple offset butterfly valves use eccentric structures to reduce contact between the disc and sealing surface during operation. A double offset butterfly valve changes the position relationship between the stem, disc, and seat. The disc moves away from the sealing surface during opening, reducing friction and limiting wear on sealing components. A triple offset butterfly valve adds a third offset position to create a cam-action sealing movement. The disc separates from the seat through a controlled rotation path, reducing rubbing between sealing surfaces.
Stem and disc aligned with the valve centerline
General flow isolation applications
Two offset positions reduce sealing contact
Applications requiring reduced friction and wear
Additional offset creates non-rubbing sealing movement
Applications requiring metal sealing structures
Double offset and triple offset designs are selected according to operating temperature, sealing structure, medium characteristics, and valve operation frequency.
Petrochemical pipeline systems often involve elevated temperature media and continuous operation cycles. Butterfly valve construction in these systems focuses on material strength, sealing structure, and compatibility with process conditions.
Power generation systems include heating and process pipelines exposed to changing temperature conditions. Valve selection focuses on structural strength, sealing design, and connection requirements within the pipeline system.
Metallurgical processes involve high-temperature environments that place greater requirements on valve components. Alloy steel construction and suitable sealing structures are applied for industrial pipeline control.
Heating networks operate under repeated temperature changes throughout seasonal operation. Butterfly valves used in these systems require appropriate material combinations and connection structures for pipeline installation.
The selection of High Performance Butterfly Valve for High Temperature applications is related to the operating temperature, medium characteristics, sealing structure, connection method, and actuation requirements.

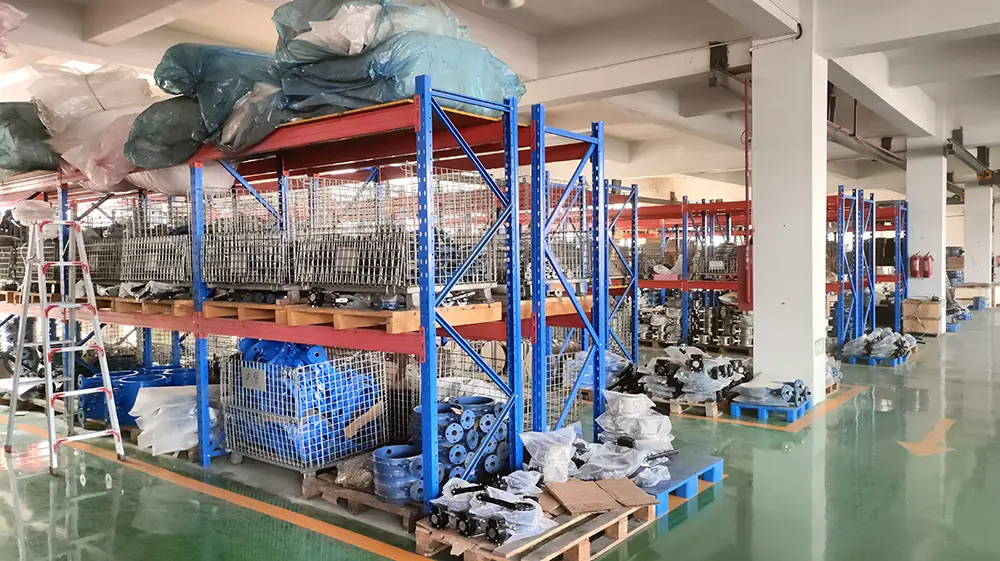

Zhejiang Zhongguan Valve Manufacture Co., Ltd. has focused on valve manufacturing for more than 19 years, with production bases located in Tianjin and Wenzhou, Zhejiang. The Wenzhou production base is located in Yongjia, Zhejiang, the hometown of pumps and valves, with a focus on butterfly valve manufacturing.
The main production diameter range covers DN40 – DN1600. The manufacturing process includes valve pressure testing, valve seat installation, shaft sleeve installation, valve marking, assembly, and inventory management. Zhongguan Valve also integrates valve supply chain resources from northern water valve production areas and southern industrial valve production areas, covering ball valves, gate valves, foot valves, strainers, check valves, and control valves.
Zhongguan Valve produces valves with required ISO certificates and provides products according to applicable standards including GB, API, and ANSI. The butterfly valve production system covers different connection structures, material combinations, and sealing configurations for industrial applications. Review our certificates for more detail.
According to the supplied technical specifications, its applications cover an approximate working temperature range from -40℃ to 600℃. The valve configuration includes alloy steel body and disc structures with different seat options according to application requirements.
Metal seat structures provide higher temperature resistance and mechanical stability for applications exposed to continuous heat conditions. PTFE seats provide low friction and corrosion resistance for applications requiring flexible sealing characteristics.
Double offset butterfly valves use two eccentric positions to reduce disc and seat contact during operation. Triple offset butterfly valves add another offset position to create a cam-action sealing movement with reduced rubbing between sealing surfaces.
High temperature butterfly valves are used in petrochemical processing, power generation, metallurgical systems, urban heating networks, marine engineering, and other industrial pipeline applications involving elevated temperature conditions.
Zhejiang Zhongguan Valve Manufacture Co., Ltd. manufactures industrial butterfly valves based on valve production experience, material selection, and manufacturing processes developed over more than 19 years.
The High Performance Butterfly Valve for High Temperature combines alloy steel body and disc construction, quarter-turn operation, and multiple connection options for industrial pipeline systems requiring elevated temperature service.
With production bases in Tianjin and Wenzhou, butterfly valve production covering DN40–DN1600, and manufacturing processes including pressure testing, seat installation, shaft sleeve installation, and marking, Zhongguan Valve focuses on industrial butterfly valve manufacturing for different pipeline applications.
Need a high temperature butterfly valve for your pipeline? Share your operating temperature, medium, DN size, and connection requirements.
