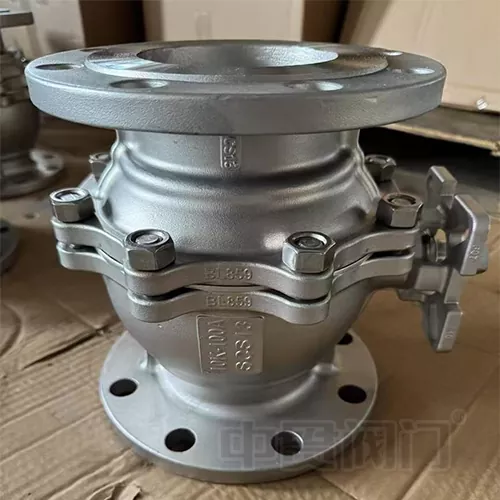

ASME Standard Flange High Platform Stainless Steel Ball Valve

The ASME Standard Flange High Platform Stainless Steel Ball Valve is a professional-grade industrial valve engineered to handle corrosive media, high temperature / high pressure conditions, and stringent sealing requirements in fluid control systems.

The valve body and all wetted parts are manufactured from premium stainless steel (CF8 / CF8M / CF3M available), combined with ASME B16.5 standard flanges to ensure secure and reliable connection to piping systems. Compared with conventional ball valves, the unique integrated high-platform design features a standardized ISO 5211 mounting pad directly on top of the valve body, allowing quick installation of pneumatic, electric, or electro-hydraulic actuators without additional brackets.

As one of the core products of Zhongguan Valve, this ball valve has been widely used in oil & gas transmission, chemical reactor systems, food-grade sanitary lines, pharmaceutical purified water systems, seawater desalination, and marine ballast systems. With excellent corrosion resistance, bubble-tight zero-leakage sealing, and fire-safe design, it delivers long-term stable operation while significantly reducing maintenance frequency and total cost of ownership.

Key Technical Advantages

1. Excellent Corrosion & High-Temperature Resistance

• Material Options: Valve body and ball made of CF8 / CF8M (304 / 316 stainless steel) or higher-grade CF3M (316L). Optimized nickel, chromium, and molybdenum content provides outstanding resistance to sulfuric acid, hydrochloric acid, alkaline solutions, salt spray, and various organic solvents.
• Temperature Range: Suitable for -29°C to +250°C (extendable to +350°C with high-temperature packing options). Performs reliably in steam lines, hot oil systems, and other high-temperature applications without sealing failure or body deformation.
• Compatible Media: Crude oil, natural gas, acid/alkali solutions, seawater, pharmaceutical solvents, food materials, chlorine-containing media, etc.

2. Bubble-Tight Zero Leakage + Fire-Safe Design

• Leakage Rating: Tested to ISO 5208 Class VI (bubble-tight) — no visible leakage under rated pressure. Ideal for toxic, flammable, or high-value media.
• Fire-Safe Structure: Metal-to-metal secondary sealing surface between ball and seat. Even after soft seat burnout, the valve maintains basic shut-off, meeting API 607 / ISO 10497 fire-safe standards.
• Anti-Static Design: Anti-static spring between stem and ball ensures reliable charge dissipation, eliminating explosion risks from static buildup.

3. Integrated High-Platform Structure – Actuator Mounting in 5 Minutes

• Interface Standard: High platform conforms to ISO 5211, directly matching major brands of pneumatic and electric actuators — no custom adapter plates or brackets required.
• Installation Efficiency: On-site actuator mounting requires only bolting + stem coupling. One person can complete the job within 5 minutes, saving 2/3 of installation time compared to traditional bracket-mounted valves.
• Operational Stability: The integrated platform shortens the transmission distance between actuator and stem, reducing backlash and improving cycle life and position feedback accuracy.

4. Low Flow Resistance & High Cv Value – Energy Saving

• Flow Path Design: Full-bore or standard-bore design with smooth internal contours minimizes pressure drop. Full-bore models deliver a Cv value nearly identical to the same-size pipe, preserving original system flow characteristics.
• Energy Savings: Low flow resistance means reduced pumping energy consumption. For 24/7 continuous operations in chemical or water treatment plants, annual electricity savings can be substantial.

5. Multi-Level Leak Prevention & Long Service Life

• Stem Sealing: V-ring PTFE packing with spring-loaded pre-tension automatically compensates for wear — no frequent gland tightening required.
• Ball Support: Floating or trunnion-mounted ball design (depending on size) with self-lubricating bushings reduces torque and extends cycle life. Tested to >50,000 switching cycles per GB/T 12237.

Typical Applications & Industries

Easy Installation & Low Maintenance

• Flange Connection: Complies with ASME B16.5 (Class 150 / 300 / 600). Direct fit to standard pipe flanges — no custom modification required.
• Quick Disassembly: Actuator bolted directly to the platform. Removing the actuator for manual emergency operation or inspection does not affect valve body or piping connection.
• In-Line Maintenance: Select models support in-line disassembly (check specific design) — replace seats or seals without removing the entire valve from the pipeline, significantly reducing downtime.
• Maintenance Interval: Under normal conditions, inspect packing seal and operating torque every 12 months. Actual service life can exceed 5 years depending on media and cycle frequency.

Technical Specifications

Available Options

• Actuator Type: Manual worm gear / Single/Double acting pneumatic / Electric (24V/110V/220V/380V) / Electro-hydraulic
• Seat Material: PTFE / RPTFE / PEEK / Metal hard seal
• Ball Treatment: Mirror polished / Nitrided hardening / Tungsten carbide coating
• Special Options: Locking device / Purge port / Extended stem / Insulation jacket

Why Choose Zhongguan Valve?

• Manufacturing Standards: Strict compliance with ASME, API, ISO, GB/T standards. Material certificates, pressure test reports, and fire-safe certifications available.
• Quality Assurance: 100% factory pressure testing + seal testing. Every valve is guaranteed to meet specified parameters.
• Fast Response: Standard stocked products shipped within 24 hours. Non-standard / custom orders delivered in 2–4 weeks.
• Technical Support: Full service from sizing calculation and installation guidance to after-sales maintenance.
