In today's industrial flow control systems, choosing the right valve is crucial for performance, durability, and cost-effectiveness. Among the many valve types available, the Replaceable Soft Seat Butterfly Valve has become a preferred option for engineers and plant operators who value reliability and easy maintenance. Designed with a replaceable soft seat structure, this valve ensures superior sealing, longer service life, and convenient repair or replacement when needed.
At Zhejiang Zhongguan Valve Manufacture Co., Ltd., we have specialized in producing high-quality butterfly valves that meet international standards. Our replaceable soft seat butterfly valves are engineered to deliver exceptional sealing performance even under high pressure and temperature variations.

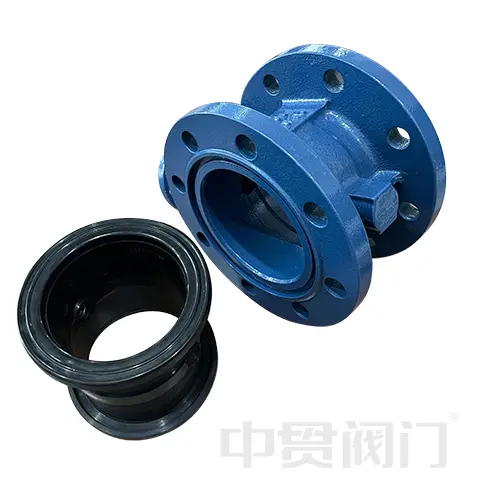

A Replaceable Soft Seat Butterfly Valve is a type of quarter-turn valve used to regulate or isolate fluid flow. The key feature lies in its soft, replaceable sealing seat, which allows users to easily replace the worn seat without dismantling the entire valve. This design significantly reduces downtime and maintenance costs, making it ideal for industrial applications such as water treatment, HVAC systems, chemical plants, and food processing.
Replaceable Seat Design: The soft seat can be replaced quickly, reducing maintenance time and cost.
Excellent Sealing Performance: The soft sealing material (EPDM, NBR, PTFE, or Viton) ensures zero leakage under normal conditions.
Durable Construction: Made from corrosion-resistant materials such as ductile iron, stainless steel, or carbon steel.
Wide Application Range: Suitable for liquids, gases, and slurries.
Easy Operation: Quarter-turn handle or gear operation provides smooth and precise control.
Versatile Mounting Options: Compatible with wafer, lug, or flanged connections.
Below is a detailed table outlining the standard technical parameters for our Replaceable Soft Seat Butterfly Valve:
| Parameter | Specification |
|---|---|
| Valve Type | Replaceable Soft Seat Butterfly Valve |
| Nominal Diameter (DN) | DN50 – DN1200 (2" – 48") |
| Nominal Pressure (PN) | PN10 / PN16 / PN25 / Class 150 |
| Body Material | Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | Stainless Steel, Aluminum Bronze, Ductile Iron |
| Seat Material | EPDM, NBR, PTFE, Viton |
| Stem Material | Stainless Steel (SS420, SS316) |
| Connection Type | Wafer, Lug, or Flanged |
| Operation | Lever, Gear, Pneumatic, or Electric Actuator |
| Temperature Range | -20°C to +200°C (depending on seat material) |
| Medium | Water, Air, Oil, Gas, Weak Acid, or Alkali Solutions |
| Design Standard | API 609 / EN 593 / ISO 5752 |
| Test Standard | API 598 / EN 12266-1 |
The Replaceable Soft Seat Butterfly Valve is widely used across multiple industries due to its excellent sealing performance and ease of maintenance. Common applications include:
Water Supply and Drainage Systems: For regulating water flow and ensuring tight shutoff.
HVAC and Air Handling Systems: Used for controlling air and chilled water circuits.
Chemical and Petrochemical Plants: Ideal for handling corrosive or abrasive fluids.
Food and Beverage Industry: Suitable for hygienic flow control applications.
Marine and Offshore Engineering: Corrosion-resistant materials ensure reliability in harsh environments.
The soft seat design plays a key role in extending the life and usability of the valve. Unlike traditional valves that require complete replacement after the seat wears out, this design allows for easy replacement of the soft seat only, ensuring cost savings and operational efficiency.
Moreover, the soft materials such as EPDM or PTFE provide excellent resilience and chemical resistance, making the valve suitable for both high-pressure and corrosive conditions. This innovative feature makes the valve not only more economical but also more environmentally friendly, as fewer components need to be discarded.
One of the biggest advantages of the Replaceable Soft Seat Butterfly Valve is its low maintenance requirement. The valve's compact structure allows for quick disassembly, and the replaceable seat ensures easy refurbishment. With proper maintenance, it can perform efficiently for years, providing a stable flow control experience.
Maintenance Tips:
Regularly inspect the soft seat for wear or deformation.
Clean the valve interior to prevent debris accumulation.
Apply appropriate lubricants on the stem and sealing areas.
Replace the soft seat immediately if leakage or poor sealing is observed.
At Zhejiang Zhongguan Valve Manufacture Co., Ltd., we adhere to strict quality control systems throughout the manufacturing process. Every Replaceable Soft Seat Butterfly Valve undergoes comprehensive testing, including hydrostatic and pneumatic pressure tests, to ensure it meets international standards.
We utilize advanced CNC machining and precision casting technologies to guarantee dimensional accuracy and long-term reliability. Our factory's commitment to innovation and excellence has made our valves trusted by customers across more than 40 countries worldwide.
Q1: What makes the Replaceable Soft Seat Butterfly Valve different from a standard butterfly valve?
A1: The key difference is its replaceable seat design. While standard butterfly valves require full replacement when the seat is damaged, this valve allows only the soft seat to be changed, saving both time and cost.
Q2: How often should I replace the soft seat in a Replaceable Soft Seat Butterfly Valve?
A2: Replacement frequency depends on the operating medium, temperature, and pressure. Generally, it is recommended to inspect the seat every 6–12 months and replace it when signs of wear, hardening, or leakage appear.
Q3: Which materials are available for the valve seat and body?
A3: Common soft seat materials include EPDM, NBR, PTFE, and Viton, each suited for different fluids and temperatures. The valve body can be made from ductile iron, carbon steel, or stainless steel, depending on the working environment.
Q4: Can the Replaceable Soft Seat Butterfly Valve be used for both on/off and throttling applications?
A4: Yes. The valve can serve both functions effectively. When fully opened, it allows unrestricted flow, and when partially closed, it provides accurate throttling control with minimal pressure loss.
The Replaceable Soft Seat Butterfly Valve represents the perfect blend of efficiency, convenience, and durability. Its smart design reduces operational downtime, improves sealing reliability, and enhances the overall lifespan of your piping system. Whether you are managing industrial fluids, chemical processes, or water treatment applications, this valve offers outstanding performance and long-term value.
For more information about our Replaceable Soft Seat Butterfly Valve or to request a customized solution, please contact Zhejiang Zhongguan Valve Manufacture Co., Ltd. — your trusted partner in industrial valve manufacturing.
