In the world of valves, two key valves with "ball" in their names—ball valves and float valves—are often confused. Although both have the "ball" in their names, their functions, applications, and operating principles are completely different. Choosing the wrong valve can lead to equipment failure or even safety accidents. As core components of fluid control systems, the differences between the two directly impact industrial safety and domestic water stability.

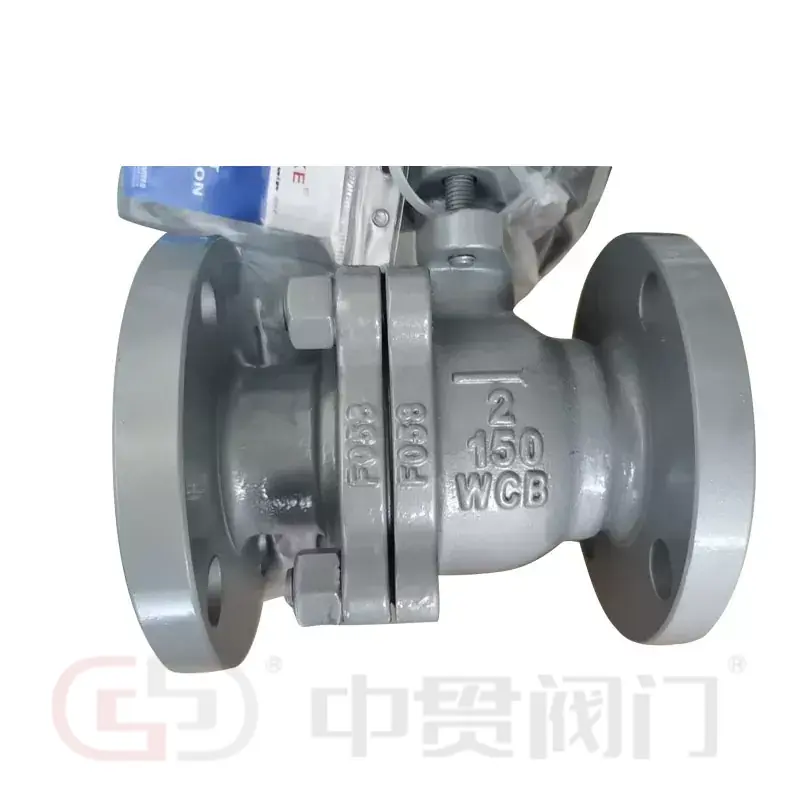

Ball Valve: A Reliable "On/Off Handle" for Pipelines
Structure: The core is a precision sphere with a central hole, tightly fitted into the valve body. The stem is connected to the top of the sphere and rotated by a handle or actuator.
Operation: Turn the handle 90 degrees:
Open: The sphere's bore aligns with the pipeline, allowing fluid to flow freely.
Close: Rotate the sphere 90 degrees, blocking the pipeline with its solid core, achieving a tight shutoff (especially with full-bore designs, which minimize pressure loss).
Advantages: Fast operation, reliable sealing (especially in the closed state), low flow resistance, high-pressure and high-temperature resistance, and long service life. Applications: Main water pipe shut-offs in homes, industrial process isolation (emergency shut-off of reactor feeds in chemical plants), gas pipeline control, and irrigation system zone control.
Float Valve: An Automatic "Manager" of Liquid Levels
Structure: The key component is a hollow float (usually plastic or copper), connected to the valve plug (or diaphragm) inside the valve body via a lever arm (metal or plastic).
Operation:
Liquid level drops: The float drops, and the lever arm opens the valve plug, opening the water inlet and allowing water to be replenished.
Liquid level rises: The float rises, and the lever arm gradually presses down on the valve plug. When the set level is reached, the valve plug completely closes the water inlet and stops replenishing.
Advantages: Fully automatic liquid level control prevents overflow or pump-out, and the structure is relatively simple.
Applications: Toilet tanks, rooftop water storage towers, industrial cooling tower replenishment, farm animal drinking troughs, and expansion tanks in large central air conditioning systems.
Real-World Case Study: Choosing the Right Valve Avoids Costs
Case 1: Critical Isolation for Industrial Safety (Ball Valve)
In 2022, a minor leak occurred in a steam pipe at a food processing plant in Brisbane, Australia. The maintenance team quickly closed the upstream ball valve and safely isolated the faulty pipe section within minutes. The engineer emphasized, "In situations like this where fast, reliable, and complete shutoff is required, ball valves are the preferred choice. Float valves simply cannot provide this type of positive, instantaneous shutoff."
Case 2: The Culprit of Water Tower Overflows (Float Valve)
In 2023, multiple rooftop water tower overflows occurred in an older HDB estate in Singapore, causing water damage and slippery public areas. An inspection by the water utility company revealed that several float valves were failing due to aging internal valve plugs or ruptured float balls, preventing them from shutting off the water at the set water level. "Regular inspection and replacement of aging float valves is crucial to preventing water waste and property damage," the inspection report concluded.
Conclusion: Functionality Determines Choice
While ball valves and float valves share the same "ball" name, they are designed for completely different tasks. The ball valve is the master of manual on/off control in your pipes, providing reliable on/off control;
the float valve is the automatic steward of the tank's liquid level, silently safeguarding the water level.
Understanding their core differences—manual pipe control vs. automatic level control—is crucial for ensuring safe water use in homes, smooth industrial processes, and avoiding unnecessary losses. The next time you see that rotating handle or that ball floating in your tank, you'll clearly understand the important mission they each carry out.
-
