Butterfly valves are essential components in various industrial applications, providing efficient flow control in piping systems. Their simple design, reliability, and cost-effectiveness make them a popular choice for regulating fluids and gases. Below, we break down the structure, working principle, and key specifications of butterfly valves to help you understand their functionality and advantages.

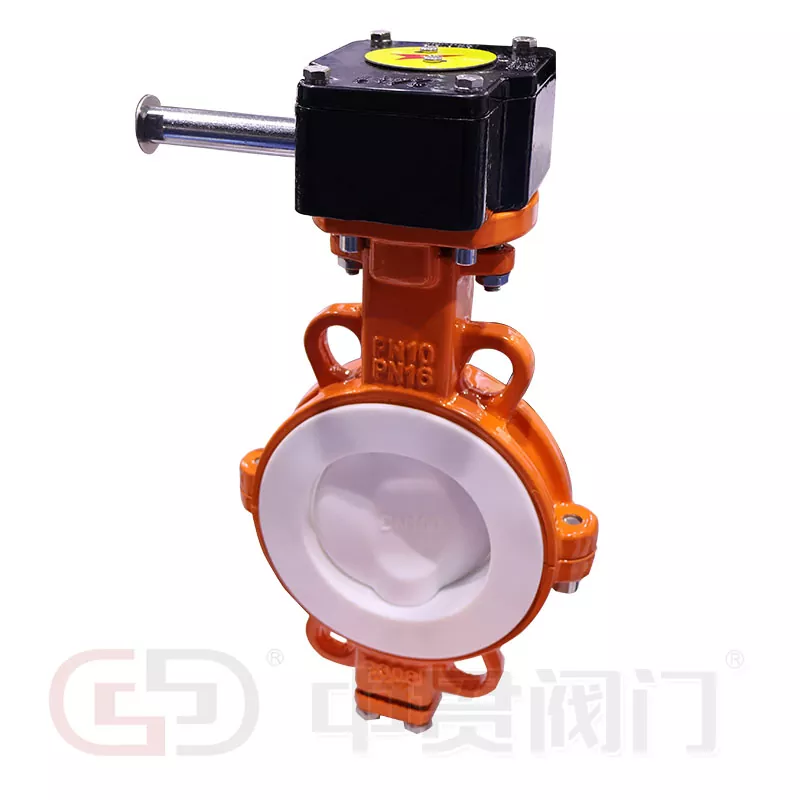

A butterfly valve consists of several fundamental parts:
Body: Typically made from materials like cast iron, stainless steel, or PVC, the body houses the internal components.
Disc: A circular disc mounted on a rotating shaft, which controls the flow by pivoting within the valve body.
Stem: Connects the disc to the actuator and enables rotation.
Seat: Provides a tight seal between the disc and the body when the valve is closed. Common materials include EPDM, Viton, or PTFE.
Actuator: Operates the valve manually, electrically, or pneumatically to rotate the disc.
The operation of a butterfly valve is straightforward. When the actuator rotates the stem, the disc moves either parallel or perpendicular to the flow. In the open position, the disc aligns with the flow, allowing minimal pressure drop. When closed, the disc rotates 90 degrees to block the flow completely. The quarter-turn operation ensures quick shut-off or regulation, making butterfly valves ideal for applications requiring rapid response.
Butterfly valves are available in various sizes, pressure ratings, and materials to suit diverse requirements. Below is a detailed overview of standard specifications:
Table 1: Standard Butterfly Valve Specifications
| Parameter | Details |
|---|---|
| Size Range | 2 inches to 48 inches |
| Pressure Rating | Up to 740 PSI (Class 150/300) |
| Temperature Range | -40°F to 600°F (-40°C to 315°C) |
| Body Materials | Cast Iron, Stainless Steel, Ductile Iron, PVC |
| Disc Materials | Stainless Steel, Aluminum Bronze, Coated |
| Seat Materials | EPDM, NBR, Viton, PTFE |
| Operational Types | Lever, Gear, Electric, Pneumatic Actuators |
List of Common Applications:
Water and wastewater treatment systems
Chemical and petrochemical industries
HVAC and fire protection systems
Food and beverage processing
Pharmaceutical and sanitary applications
Butterfly valves offer several benefits, including compact design, lightweight construction, and low maintenance requirements. Their ability to handle large flow capacities with minimal pressure drop makes them superior to many alternative valve types. Additionally, the versatility of a butterfly valve allows it to perform well in both throttling and on/off applications.
When selecting a butterfly valve, consider factors such as fluid compatibility, pressure-temperature ratings, and actuation method to ensure optimal performance. With their robust construction and efficient operation, butterfly valves remain a top choice for engineers and industry professionals worldwide.
