In industrial piping systems, maintaining consistent fluid direction is critical to ensure safety and efficiency. That's where the Single Disc Check Valve plays a vital role. Designed to prevent backflow automatically, this valve uses a single disc that opens when fluid flows in the correct direction and closes immediately when flow reverses. This simple yet effective mechanism makes it an essential component across industries such as water treatment, oil and gas, power plants, and chemical processing.
At Zhejiang Zhongguan Valve Manufacture Co., Ltd., we specialize in designing and producing high-quality Single Disc Check Valves that combine durability, precision, and long service life.

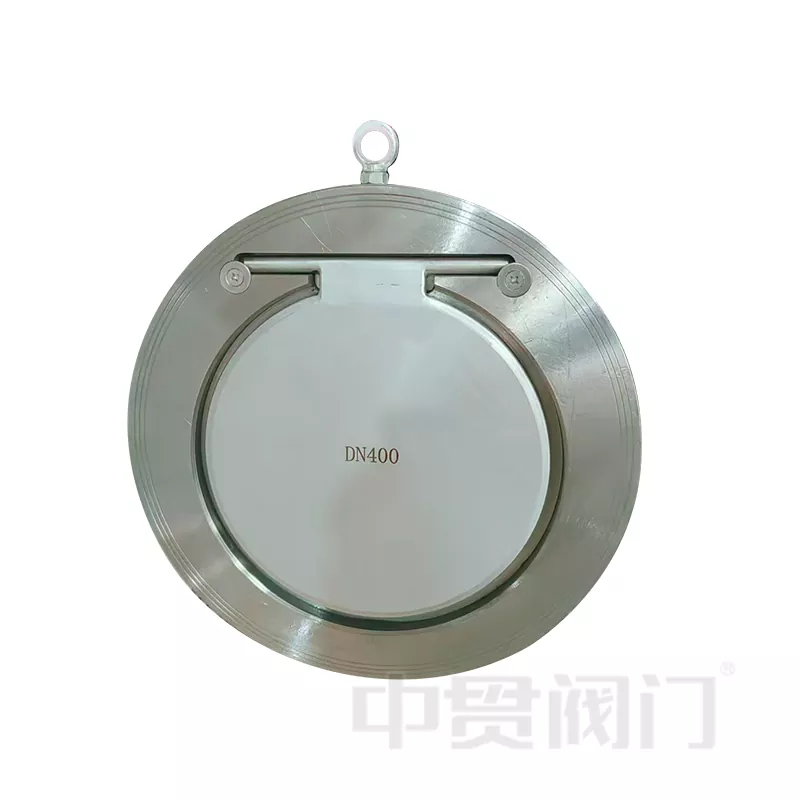

A Single Disc Check Valve, also known as a swing check valve, is a one-way valve that allows fluid to flow freely in one direction while automatically closing to prevent reverse flow. It consists mainly of a valve body, disc, hinge, and seat. When fluid moves in the desired direction, the pressure lifts the disc off the seat, allowing flow to continue. When the flow stops or reverses, gravity or reverse pressure causes the disc to return to its closed position.
This self-acting design requires no external control, making it ideal for systems where backflow prevention is crucial without human intervention.
Our Single Disc Check Valves are engineered with precision to deliver consistent performance in demanding environments. Below are the key features that distinguish our products:
Compact Structure: Simple design with fewer moving parts ensures easy installation and maintenance.
Low Pressure Drop: Streamlined internal flow path minimizes energy loss.
Corrosion Resistance: Made from premium materials suitable for harsh chemical or marine environments.
Tight Sealing: Ensures reliable shut-off to prevent leakage and system contamination.
Long Service Life: Designed for high cycle durability under varying flow conditions.
Technical Specifications of the Single Disc Check Valve
| Parameter | Specification |
|---|---|
| Valve Type | Single Disc Check Valve |
| Size Range | DN40 – DN600 (1½" – 24") |
| Pressure Rating | PN10 / PN16 / PN25 / Class 150 / Class 300 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | Stainless Steel, Bronze, EPDM-coated options available |
| Seat Material | Metal Seated / Soft Seated (EPDM, NBR, PTFE) |
| Connection Ends | Wafer, Flanged, or Lug Type |
| Operating Temperature | -20°C to +200°C (depending on materials) |
| Medium | Water, Steam, Oil, Gas, Air, Chemical Fluids |
| Installation Position | Horizontal or Vertical (upward flow) |
These parameters demonstrate the adaptability of our Single Disc Check Valve for various industrial applications, from municipal water systems to high-pressure gas pipelines.
Efficiency in a flow control system depends heavily on maintaining consistent pressure and preventing flow reversal. The Single Disc Check Valve helps optimize these factors in several ways:
Reduced Energy Loss:
The valve's streamlined internal geometry minimizes turbulence, lowering energy consumption.
Automatic Operation:
Since it doesn't require external control or power, operational costs remain low.
Enhanced Safety:
By preventing backflow, it protects pumps, compressors, and pipelines from potential damage.
Easy Maintenance:
Its compact and accessible design simplifies inspection and replacement, reducing downtime.
Versatile Applications:
Suitable for both liquid and gas systems, making it ideal for a broad range of industries.
Choosing the right valve manufacturer means ensuring reliability, safety, and long-term performance. Zhejiang Zhongguan Valve Manufacture Co., Ltd. is a trusted global supplier with decades of experience in valve design and production.
Comprehensive Quality Control: Each valve undergoes strict pressure and leak tests before shipment.
Material Traceability: We ensure all materials meet international standards such as ISO, API, and CE.
Customization Options: Tailor-made designs to fit specific system requirements.
Fast Delivery & Global Support: Efficient logistics and responsive customer service ensure smooth cooperation.
Our goal is to provide dependable flow control solutions that enhance operational efficiency and safety for clients worldwide.
The Single Disc Check Valve is widely applied in:
Water and Wastewater Systems – Prevents contamination due to reverse flow.
Power Generation Plants – Ensures stable operation of cooling and fuel systems.
Oil and Gas Pipelines – Protects equipment from surge pressures.
Chemical and Petrochemical Industries – Handles corrosive or high-temperature media safely.
HVAC and Firefighting Systems – Maintains pressure balance and safety compliance.
Whether in municipal systems or industrial processing lines, this valve plays a vital role in maintaining stable, one-directional flow.
Q1: What is the main function of a Single Disc Check Valve?
A1: Its primary function is to allow flow in one direction and prevent reverse flow automatically, protecting pumps and pipelines from damage caused by backflow or water hammer.
Q2: How do I choose the right Single Disc Check Valve for my system?
A2: Selection depends on factors such as fluid type, pressure, temperature, and installation space. At Zhejiang Zhongguan Valve Manufacture Co., Ltd., our engineers can recommend the best model based on your specific requirements.
Q3: Can a Single Disc Check Valve be installed vertically?
A3: Yes, it can be installed both horizontally and vertically, provided that the flow direction aligns correctly with the valve's design. Vertical installation is typically used for upward flow applications.
Q4: What maintenance does a Single Disc Check Valve require?
A4: Regular inspection of the disc, seat, and hinge components ensures continued reliability. Cleaning or replacing worn seals will maintain tight shut-off and prevent leakage.
In today's competitive industrial landscape, ensuring system stability and safety is non-negotiable. A Single Disc Check Valve delivers automatic protection against reverse flow, low maintenance costs, and long-lasting reliability—all within a compact design.
By partnering with Zhejiang Zhongguan Valve Manufacture Co., Ltd., you gain access to world-class engineering, rigorous quality control, and responsive after-sales service. Our valves are built not just to perform but to last—making them a smart, long-term investment for any fluid control system.
Contact Zhejiang Zhongguan Valve Manufacture Co., Ltd.
For more details or custom specifications, please contact our sales team. We're ready to help you find the perfect Single Disc Check Valve solution for your application needs.
